请按照下面的顺序学习并完成内容的打卡
Please study and complete the check-in content in the following order.
Recite默写
Key term 核心内容
Definition定义
Exercise: Basic 基础练习
Quiz测试
Model1: Slope 斜坡模型
Model2: Connected Object模型连接件
Model3: Elivator电梯
Model4: Driving 开车
Model5: Ejection喷射
Model6: In Fluid流体中运动
P-t graph
F-t graph
Vector矢量性
9702 P1
9702 P2
9702 Exercise sheet
Momentum is a vector, and it has the same direction with ; resultant force is a vector, and it has the same direction with .
2. Newton's Second Law states that is directly proportional to the rate of
3. Why does a car driver exhibit less injury when an airbag induces a stop?
The Change in (Δp) is constant. The Airbag/Seatbelt the (Δt) of the impact. According to F=Δp/Δt, a larger Δt results in a Force. Smaller force means less damage.
The answer is
The answer is
The answer is
The answer is
The answer is
The answer is
Answer is
Answer is
Answer is
Answer is
Resultant force is N (with 2 significant figure).
Force X is N (with 2.s.f)
kgm/s
Answer is

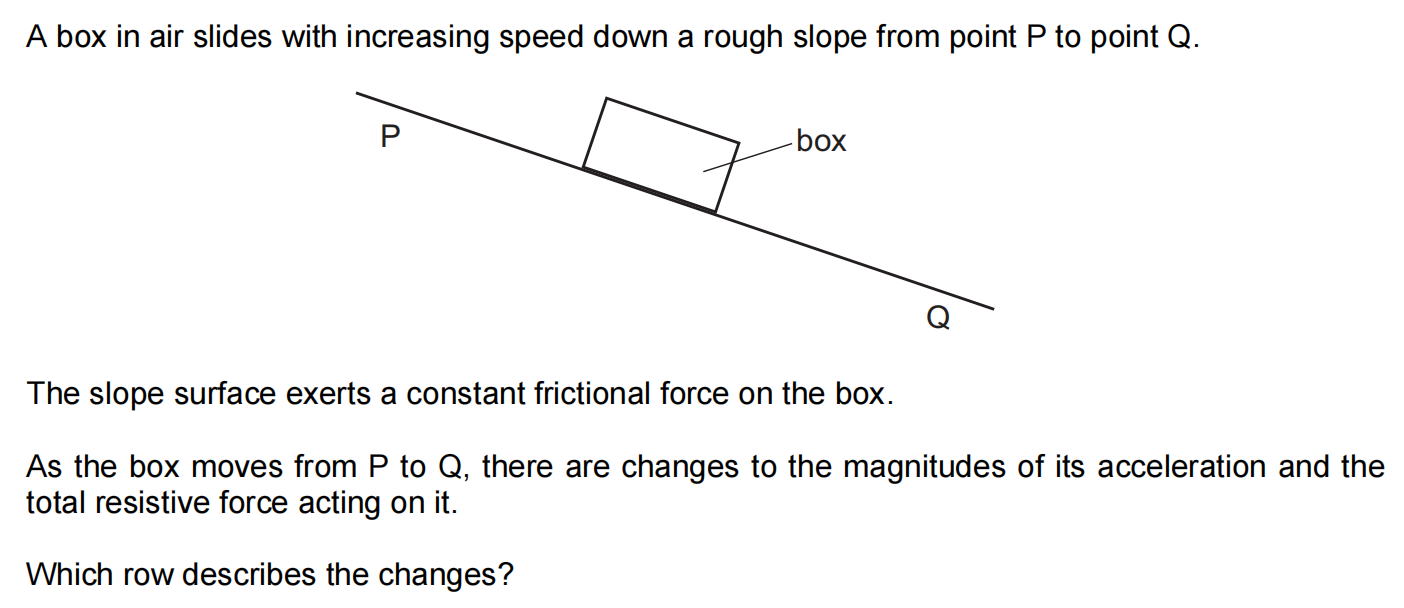

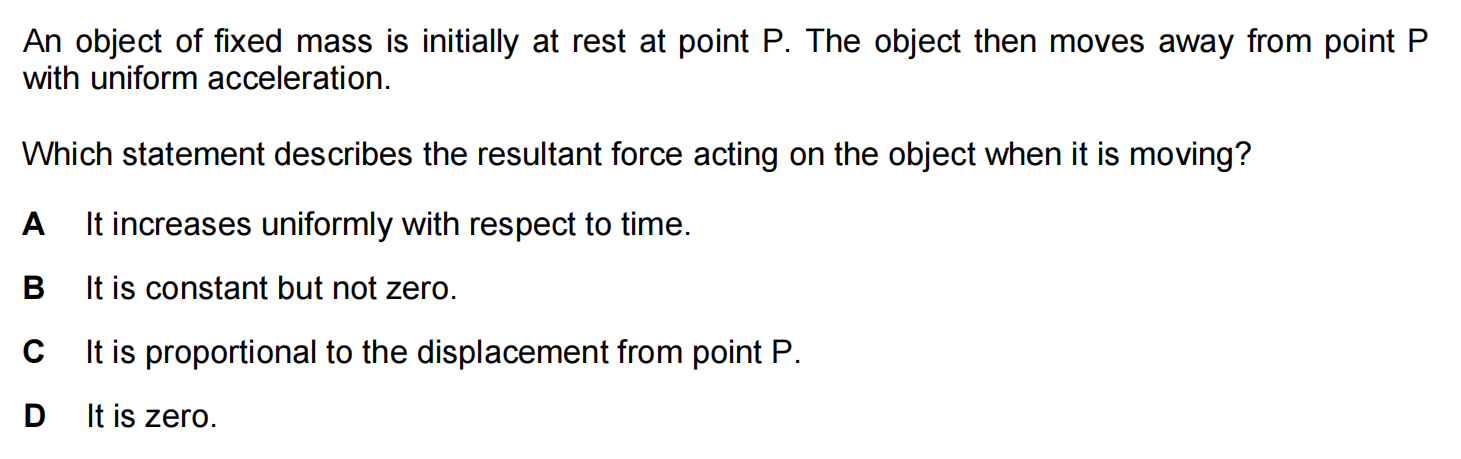

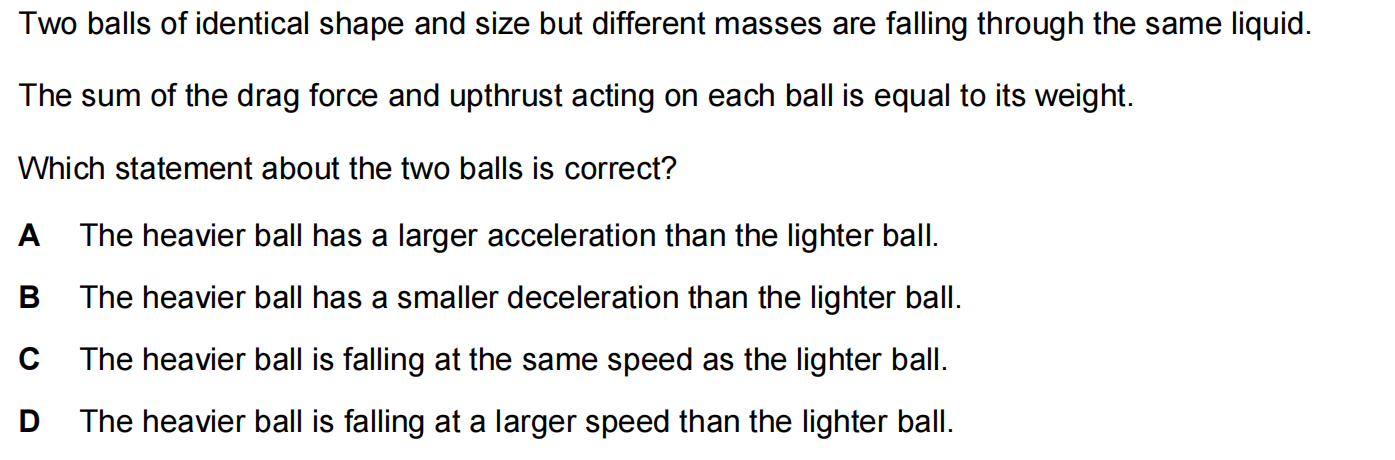

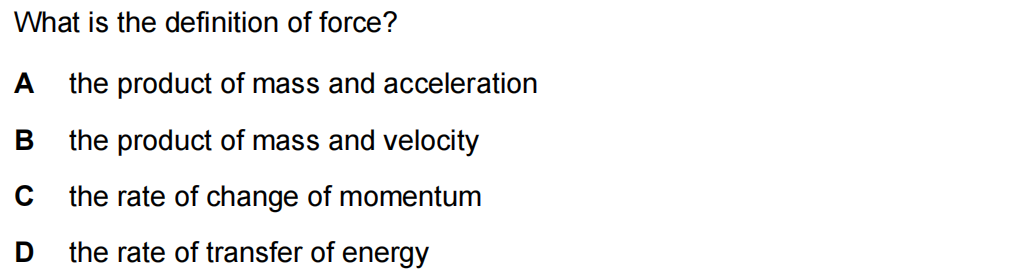

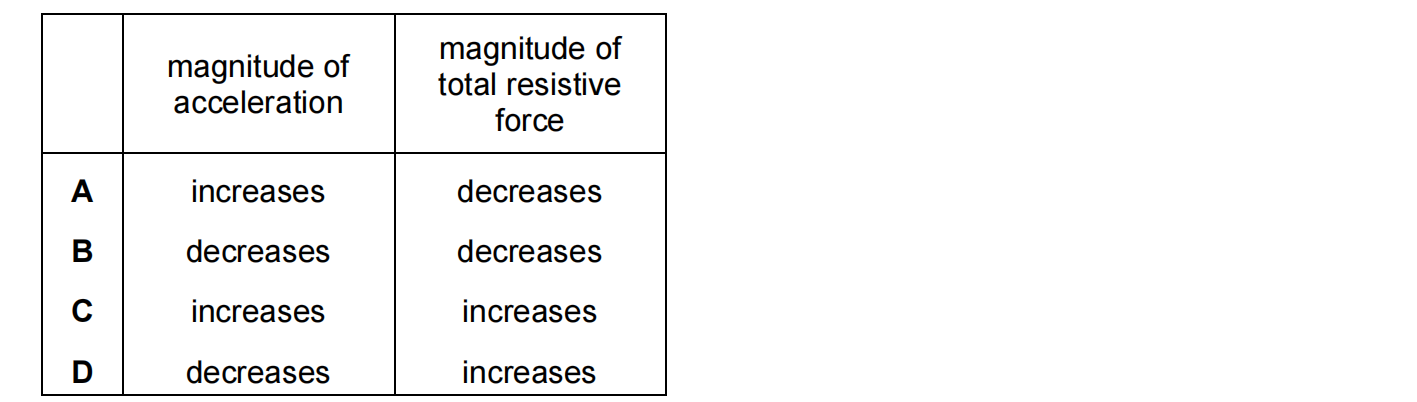

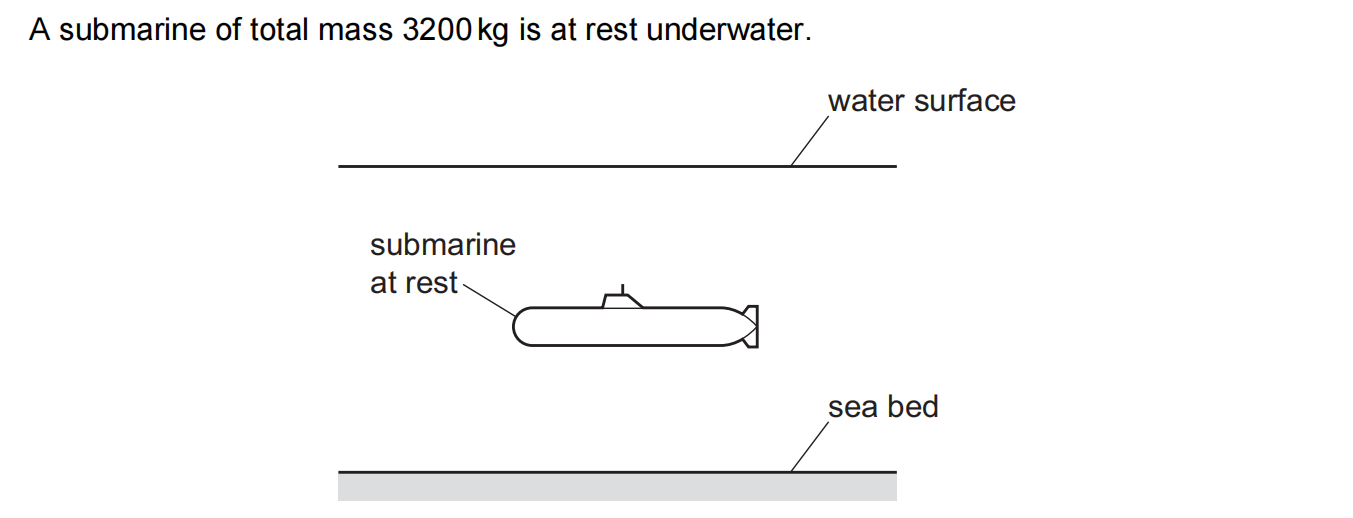

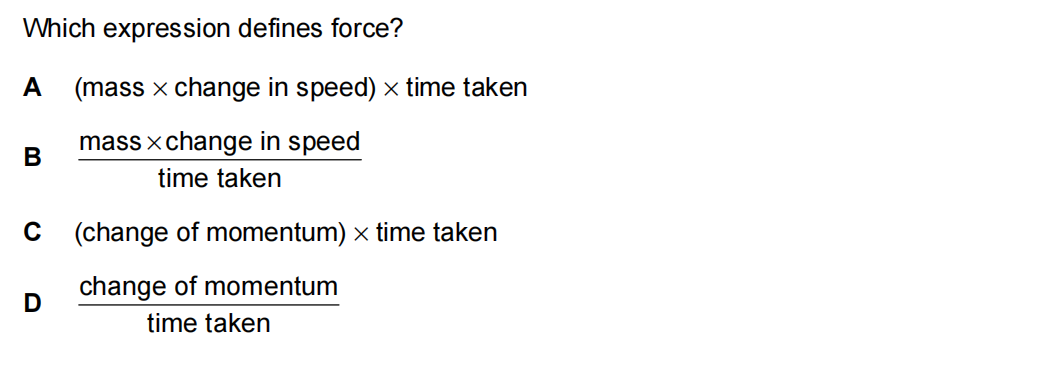

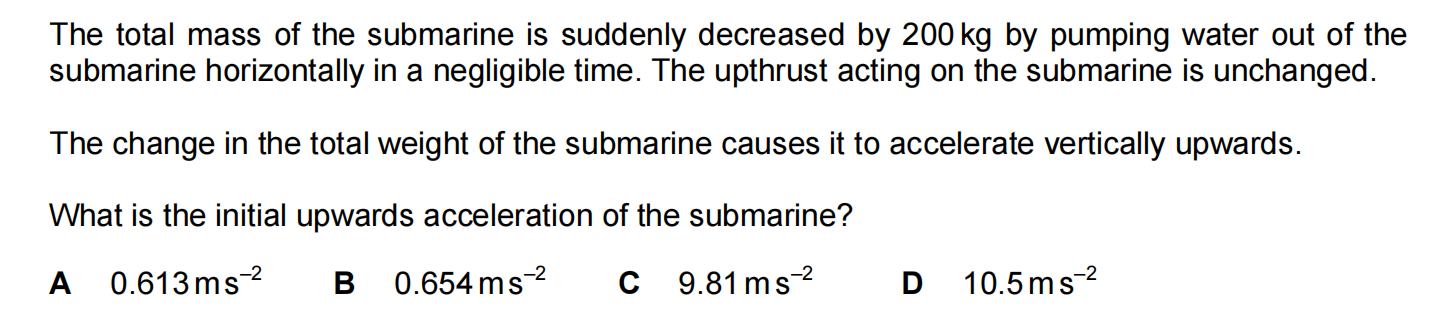

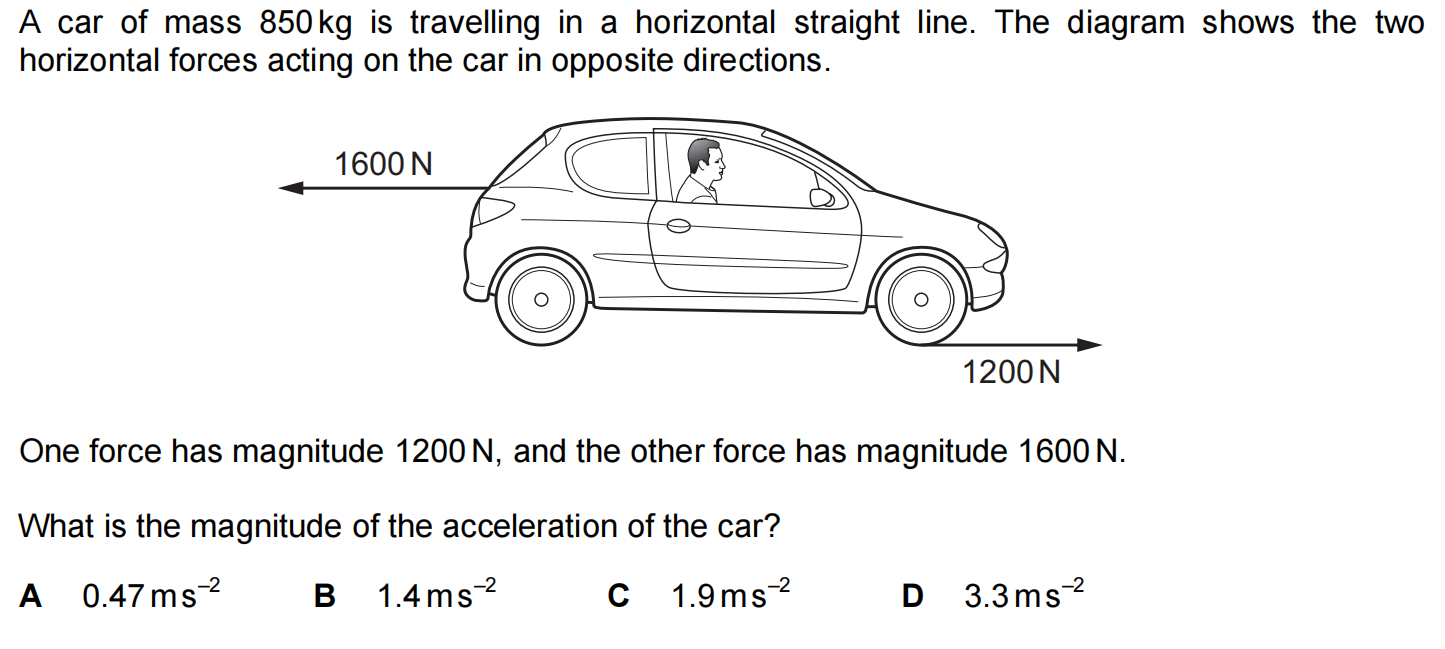

9702_m23_12015.png9702_m23_12016.png9702_m24_12003.png9702_m24_12004.png9702_m24_12007.png9702_m24_12008.png9702_m24_12032.png9702_m24_12033.png9702_m25_12007.png9702_m25_12008.png9702_m25_12015.png9702_m25_12016.png9702_s23_12017.png9702_s23_12018.png9702_s23_12019.png9702_s23_12020.png9702_s23_12021.png9702_s23_12022.png9702_s23_13023.png9702_s23_13024.png9702_s24_11018.png9702_s24_11019.png9702_s24_11020.png9702_s24_11021.png9702_s24_11022.png9702_s24_11023.png9702_s25_13020.png9702_s25_13021.png9702_s25_14009.png9702_s25_14010.png9702_s25_14016.png9702_s25_14017.png9702_w23_11016.png9702_w23_11017.png9702_w23_11018.png9702_w23_11019.png9702_w23_12015.png9702_w23_12016.png9702_w23_12017.png9702_w23_12018.png9702_w23_12019.png9702_w24_11020.png9702_w24_11021.png9702_w24_11022.png9702_w24_13020.png9702_w24_13021.png

9702_m25020.png9702_m25025.png9702_m25026.png9702_m25027.png9702_m25028.png9702_m25029.png9702_m25030.png9702_m25031.png9702_s23_21026.png9702_s23_21027.png9702_s23_21028.png9702_s23_21029.png9702_s23_21030.png9702_s23_21031.png9702_s23_21032.png9702_s23_21033.png9702_s23_22024.png9702_s23_22025.png9702_s23_22026.png9702_s23_22027.png9702_s23_22028.png9702_s23_22029.png9702_s23_22030.png9702_s23_22031.png9702_s23_22032.png9702_s23_22033.png9702_s23_23008.png9702_s23_23011.png9702_s23_23012.png9702_s23_23013.png9702_s23_23014.png

Newton's 2nd Law 打卡
I accomplish 我完成了
Evidence 证明 (Screenshot) 截图
未选择文件

文件大小不超过1M

*
提交
